In 317 Cabinet
Dynamic
• Shure SM57
Type: Dynamic (no phantom)
Polar pattern: cardioid
Sensitivity: 1.6mV/Pa
Self-noise: NA
Inventory: 1 in 317 cabinet, 3 on demand
Spec Sheet
• Shure SM58
Type: Dynamic (no phantom)
Polar pattern: cardioid
Sensitivity: 1.85mv/Pa
Self-noise: NA
Inventory: 2 in 317 cabinet, 2 on demand
Spec Sheet
• Shure SM7
Type: Dynamic (no phantom)
Polar pattern: cardioid
Sensitivity: 1.12mv/Pa
Self-noise: NA
Inventory: 1 in 317 cabinet
Spec Sheet
• EV RE20
Type: Dynamic (no phantom)
Polar pattern: cardioid
Sensitivity: 1.5mV/Pa
Self-noise: NA
Inventory: 1 in 317 cabinet, 1 on demand
Spec Sheet
• Sennheiser 421
Type: Dynamic (no phantom)
Polar pattern: cardioid
Sensitivity: 2mV/Pa
Self-noise: NA
Inventory: 1 in 317 cabinet, 1 on demand
Spec Sheet

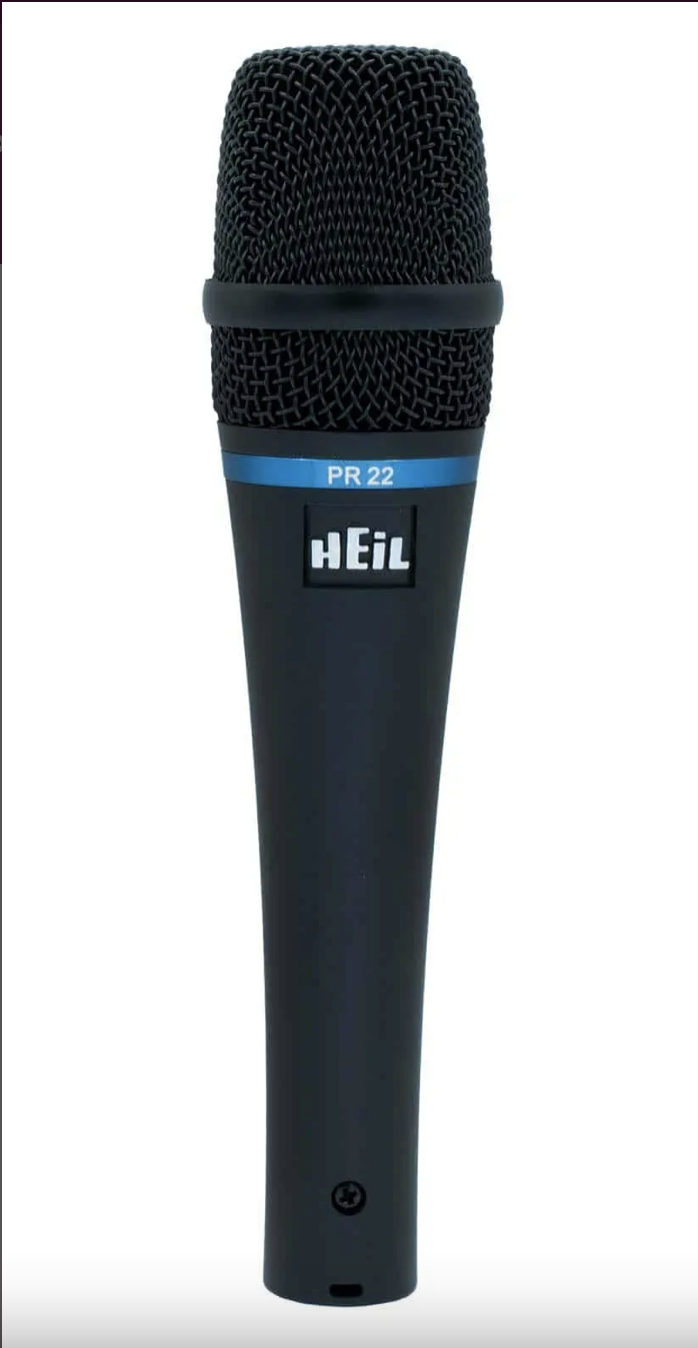

• Heil PR22
Type: Dynamic (no phantom)
Polar pattern: cardioid
Sensitivity: 1.78mV/Pa (-55dB @ 1kHz)
Self-noise: NA
Inventory: 1 in 317 cabinet
Spec Sheet

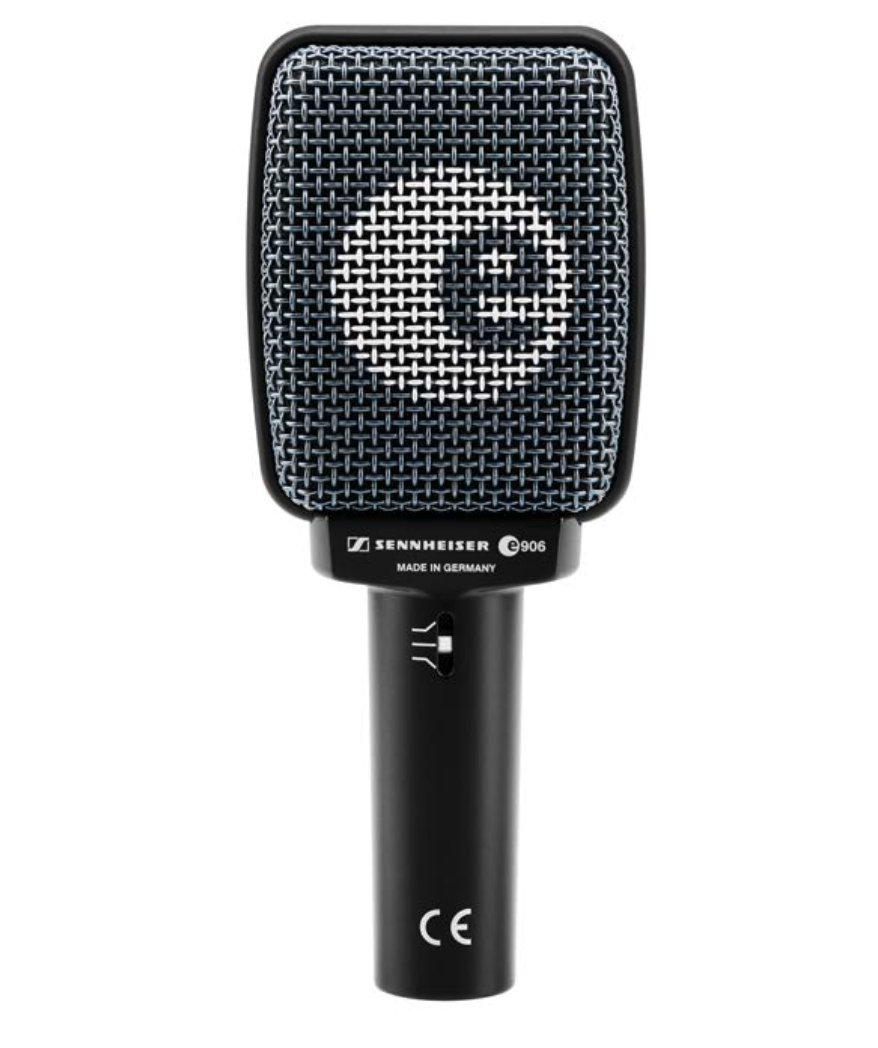

• Sennheiser e906
Type: Dynamic (no phantom)
Polar pattern: cardioid
Sensitivity: 1.5mV/Pa
Self-noise: NA
Inventory: 1 in 317 cabinet
Spec Sheet

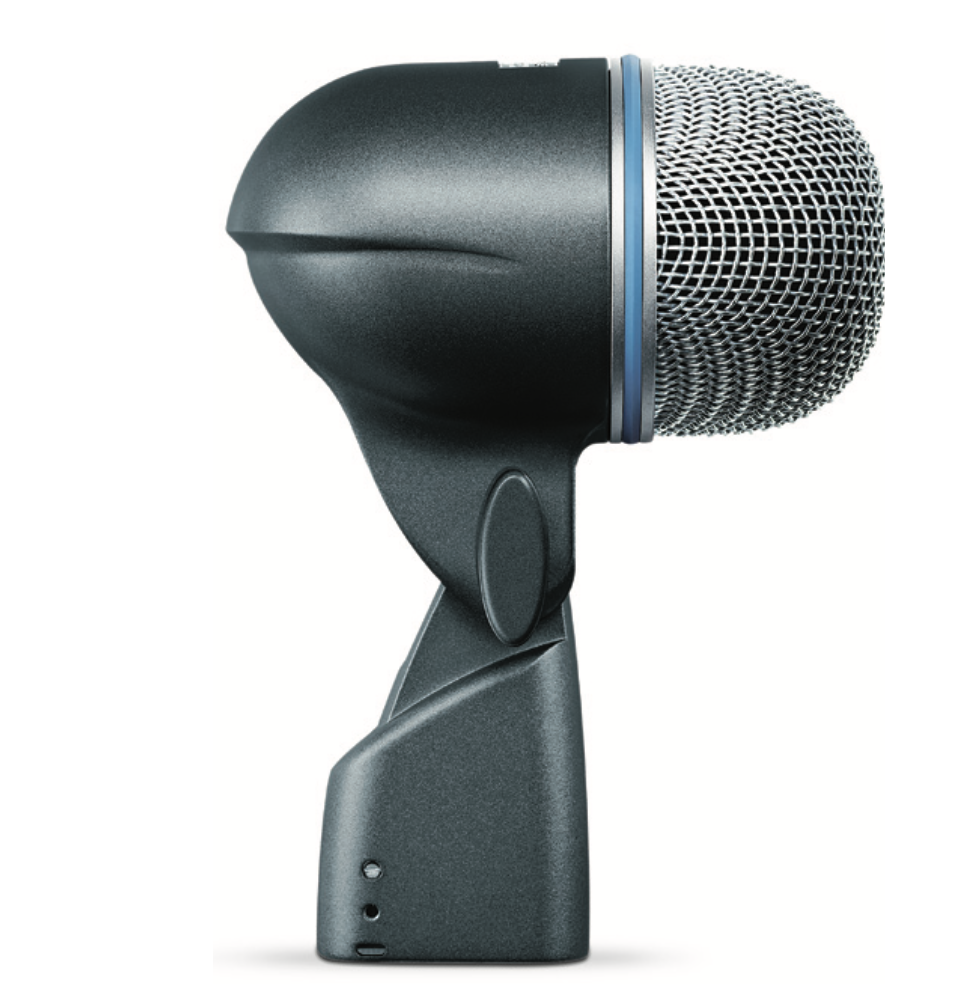

• Shure Beta 52A
Type: Dynamic (no phantom)
Polar pattern: cardioid
Sensitivity: 0.5mV/Pa
Self-noise: NA
Inventory: 1 in 317 cabinet
Spec Sheet
Ribbon
• Cascade Fat Head
Type: Ribbon (no phantom)
Polar pattern: Figure of 8
Sensitivity: 1.6mV/Pa
Self-noise: NA
Inventory: 1 in 317 cabinet
Spec Sheet: NA
Condenser
• Audio-Technica AT4051b
Type: Condenser (yes phantom)
Polar pattern: cardioid
Sensitivity: 19.9mV/Pa
Self-noise: 16dB SPL
Inventory: 1 in 317 cabinet
Spec Sheet

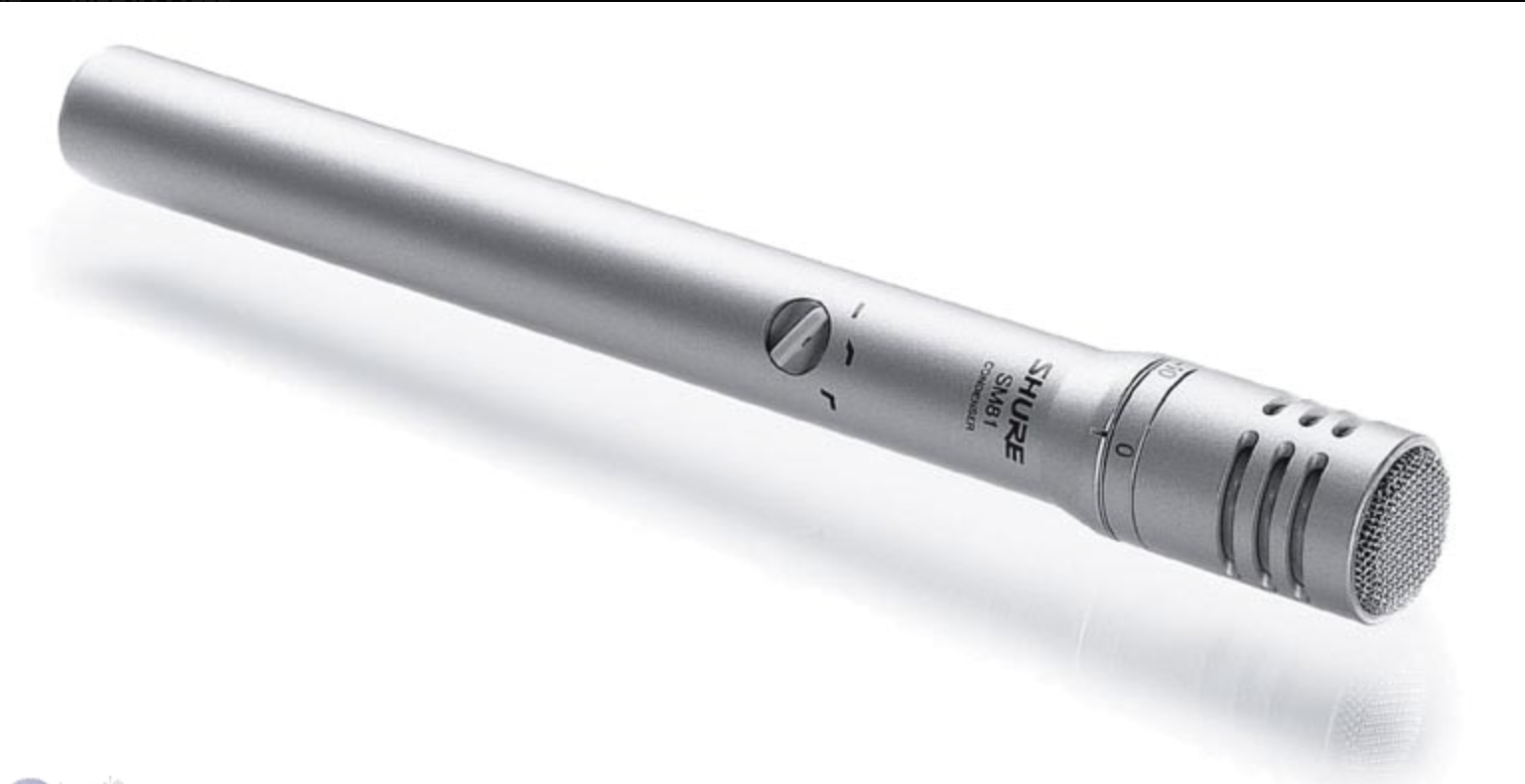

• Shure SM81
Type: Condenser (yes phantom)
Polar pattern: cardioid
Sensitivity: 5.6mV/Pa
Self-noise: 16dB SPL
Inventory: 1 in 317 cabinet, 3 on demand
Spec Sheet
• Shure KSM32
Type: Condenser (yes phantom)
Polar pattern: cardioid
Sensitivity: 16mV/Pa
Self-noise: 13dB SPL
Inventory: 1 in 317 cabinet
Spec Sheet

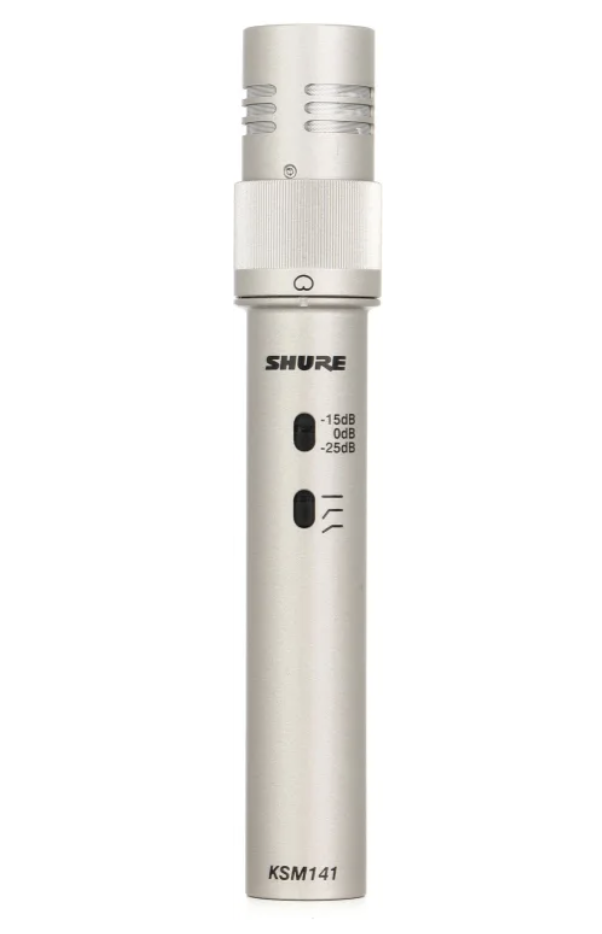

• Shure KSM141
Type: Condenser (yes phantom)
Polar pattern: cardioid and omni
Sensitivity: 14.1mV/Pa
Self-noise: 14dB SPL
Inventory: 2 (STEREO SET) in 317 cabinet
Spec Sheet

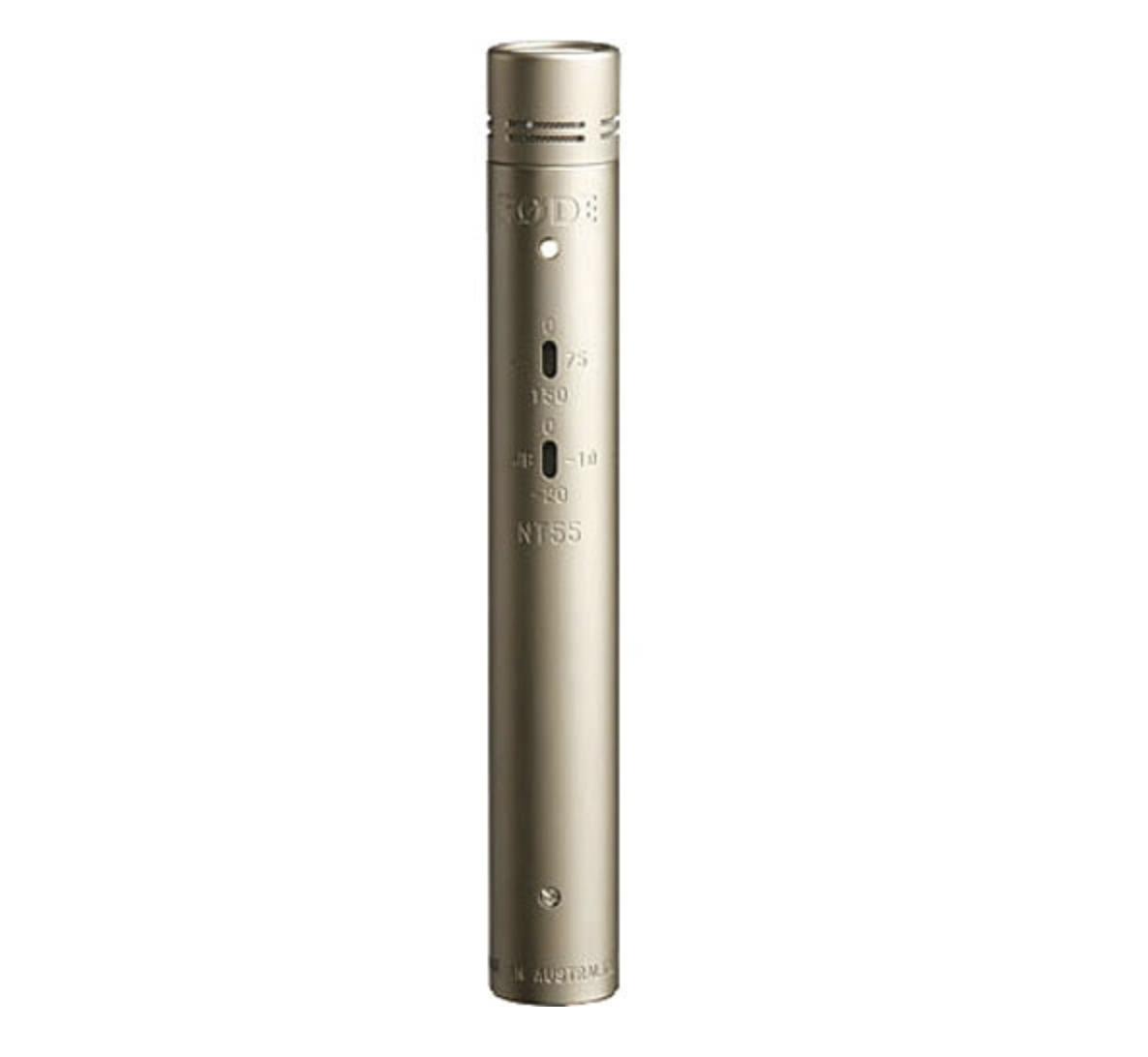

• Rode NT55
Type: Condenser (yes phantom)
Polar pattern: Cardioid and Omni (switchable capsules)
Sensitivity: 12.6mV/Pa
Self-noise: 15dB SPL
Inventory: 2 (STEREO SET) in 317 cabinet
Spec Sheet
• SE X1-S
Type: Condenser (yes phantom)
Polar pattern: cardioid
Sensitivity: 30mV/Pa
Self-noise: 9dB SPL
Inventory: 1 in 317 cabinet
Spec Sheet
• Aston Spirit
Type: Condenser (yes phantom)
Polar pattern: Multi-pattern
Sensitivity: 23mV/Pa
Self-noise: 18dB SPL
Inventory: 1 in 317 cabinet
Spec Sheet
DI Box
• Radial Pro D1 (passive, no phantom)
Type: DI box
Manual
Other Mics at the CMC (but must get permission)
Dynamic
• M88 (card)
Type: Dynamic (no phantom)
Polar pattern: cardioid
Sensitivity:
Self-noise:
Inventory: 2 on demand
Condenser
• AKG414
Type: Condenser (yes phantom)
Polar pattern: Multi-pattern
Sensitivity:
Self-noise:
Inventory: 2 on demand
• Schoeps CMC6-MK4
Type: Condenser (yes phantom)
Polar pattern: cardioid
Sensitivity:
Self-noise:
Inventory: Stereo Pair on demand

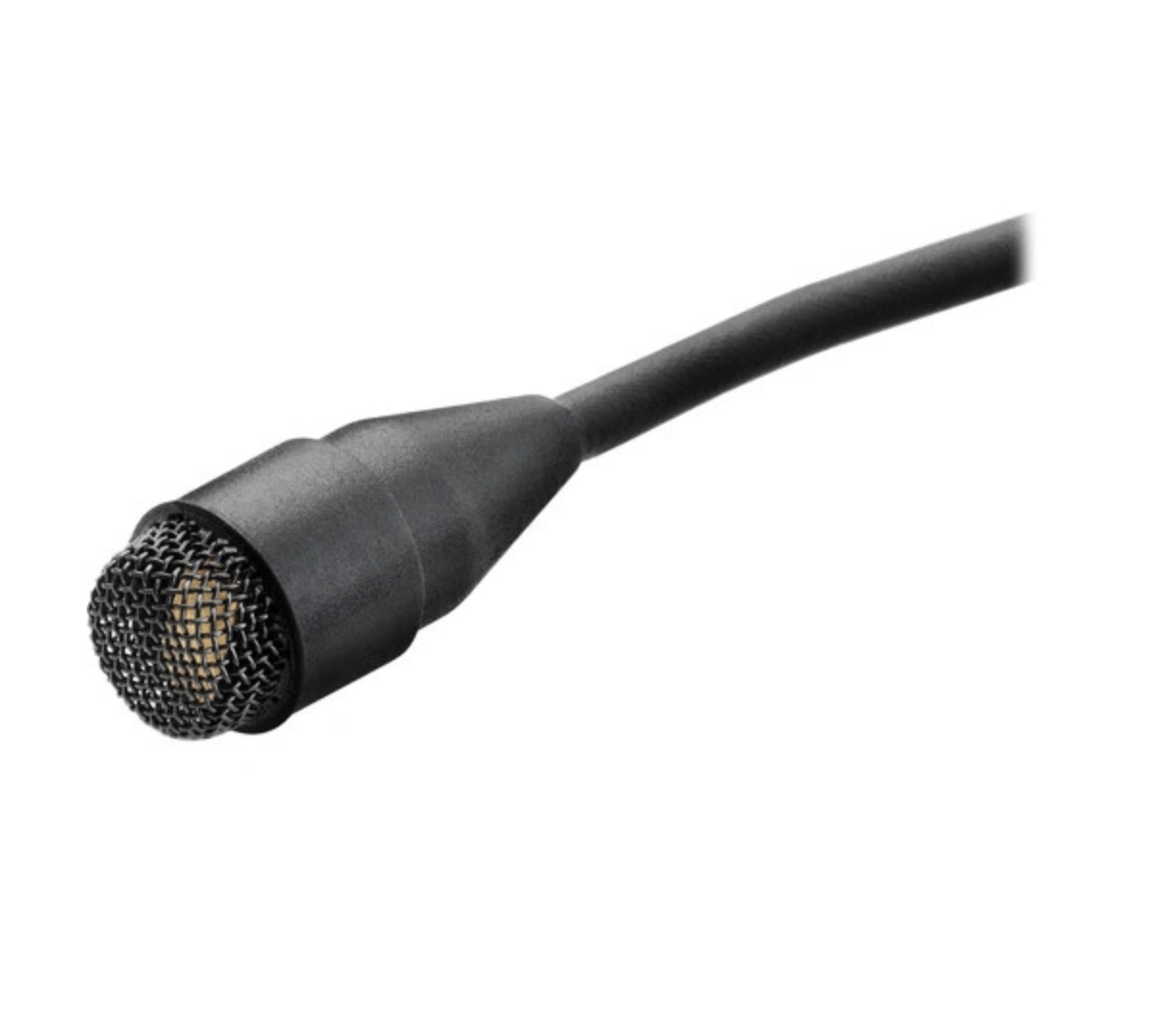

• DPA 4060 (omni)
Type: Condenser (yes phantom)
Polar pattern: Omni
Sensitivity:
Self-noise:
Inventory: 2 on demand
• DPA 4099 (hyper-card)
Type: Condenser (yes phantom)
Polar pattern: hyper-cardioid
Sensitivity:
Self-noise:
Inventory: 1 on demand
DI Box
• Radial StageBug (active, needs phantom)
Type: DI box
